Key words:Pulling grip,Support grip,Cable grip, Pulling grip

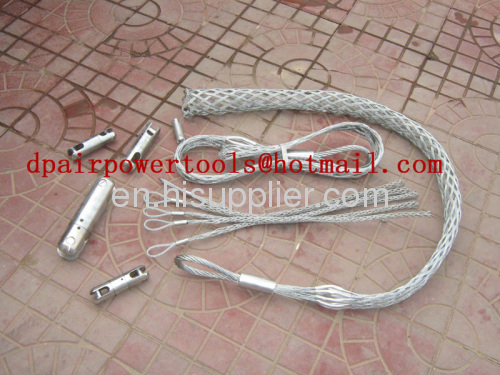

Cable socks (also called cable grips ,cable stockings,pulling grips,support grips) provide a means of cable pulling into ducts, trenches .
Cable socks are manufactured from high tensile galvanised and stainless steel wire rope,incudes
includes single eye cable socks, double eye cable socks, lace up cable socks, non-conductive cable socks and open ended cable socks.
Single-head, single strand cable socks
No. | Applicable diameter | Rated load | Length |
Scd-01 | 6-13mm | 900 kg | 300 mm |
Scd-02 | 12-19mm | 1590 kg | 550 mm |
Scd-03 | 19-25mm | 2120 kg | 600 mm |
Scd-04 | 25-38mm | 2560 kg | 700 mm |
Scd-05 | 7-12mm | 300 kg | 315 mm |
Scd-06 | 13-18mm | 400 kg | 365 mm |
Scd-07 | 18-24mm | 600 kg | 365 mm |
Scd-08 | 25-35mm | 700 kg | 465 mm |
Scd-09 | 35-48mm | 1100 kg | 535 mm |
Scd-010 | 49-60mm | 2000 kg | 715 mm |
Scd-011 | 60-75mm | 2000 kg | 830 mm |
Scd-012 | 75-90mm | 2500 kg | 930 mm |
Scd-013 | 90-115mm | 2500 kg | 1045 mm |
Scd-014 | 110-135mm | 3000 kg | 1170 mm |
Scd-015 | 130-150mm | 3000 kg | 1295 mm |
Single-head, double strand cable socks
No. | Applicable diameter | Rated load | Length |
Scs-01 | 10-20mm | 1860 kg | 600 mm |
Scs-02 | 20-30mm | 2256 kg | 600 mm |
Scs-03 | 30-40mm | 3696 kg | 600 mm |
Scs-04 | 40-50mm | 5490 kg | 600 mm |
Scs-05 | 50-65mm | 5490 kg | 600 mm |
Scs-06 | 65-80mm | 7320 kg | 600 mm |
Scs-07 | 80-95mm | 7320 kg | 600 mm |
Scs-08 | 95-110mm | 10613 kg | 900 mm |
Scs-09 | 12-16mm | 800 kg | 1300 mm |
Scs-010 | 16-20mm | 1000 kg | 1300 mm |
Scs-011 | 20-25mm | 1200 kg | 1300 mm |
Scs-012 | 25-37mm | 2400 kg | 1400 mm |
Scs-013 | 37-50mm | 1600 kg | 1400 mm |
Scs-014 | 50-60mm | 1800 kg | 2000 mm |
Scs-015 | 60-80mm | 2000 kg | 2000 mm |
Scs-016 | 80-100mm | 2500 kg | 2000 mm |
Scs-017 | 100-120mm | 3000 kg | 2000 mm |
